Range of Application

Submersible sewage pumps of series AT are suitable for sewage, waste water and all kinds of sludge. They are used by municipal authorities, industry and the private sector. Different impeller types allow an optimum adaptation to the most various delivery duties, above all for pumping unscreened sewage with long fibre and solid constituents, liquids containing air or gas as well as sludge with up to 10% solid content.

Duty Range

Normal width DN	Capacity Q	Head H	Liquid temperature t	Speed
65-250	Up to 1200 m³/h	Up to 65m	Up to +60°C	Up to 2950

Designation Example

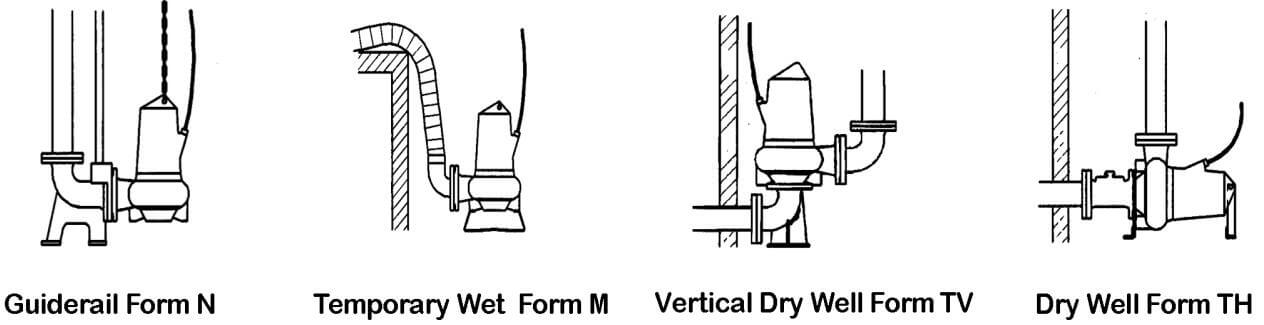

Mounting Arrangements

Impeller Types

Types

Vortex F
Ideal for smaller sewage pumps as the liquid does not pass through the impeller. Can handle stringy matter, paper, rags etc. with large clearances ensuring long life. Also suitable for high speeds due to the impeller being balanced.

Single Channel K
Ideal for sewage pumps of larger sizes. Liquid passes through eye of the impeller, but large clearance within the impeller ensures free passage.

Two Channel Z
Generally used for surface water applications or for handling sewage on very large pumps. More efficient than vortex or single channel impellers.
